Operation Timeout Start Audio

Video SDK
1

This is a continuation of this ticket since it is already closed.

Versions:
Video SDK: 1.8.5
Chrome: 115.0.5790.171 (Official Build) (64-bit)
Ionic: 6.6.1
Capacitor: 3.5.1
Vue: 3

As per @vic.yang, suggested to add the auto-play-audio-failed event

this.zoomClient.on("auto-play-audio-failed", async () => {
        console.log('auto play failed, waiting for a user interaction')
}

But the console.log in the code block did not appear in the web browser’s console.

I also added a button in order to have a user interaction once the user is connected to the session.

watchEffect(() => {
  console.log("=== Is Command Channel Ready? ===", callStore.isCommandChannelReady)

  if (callStore.isCommandChannelReady) {
    if (If Statement Here) {
      openModal()
    } else {
      callStore.startAudio()
    }
  }
})

const openModal = async () => {
  const modal = await modalController.create({
    component: MeeingStartAudioConfimationModal, //name of the component to render inside ionic modal
      cssClass: "audio-modal",
  });

  modal.present();
}

Modal Vue:

async function buttonOk() {
    await callStore.zoomStream.startAudio()
      .then(response => console.log("=== audio started ==="))
      .catch(e => console.error("=== Unabled to start audio ===", e))
    modalController.dismiss();
}

However we are still experiencing OPERATION_TIMEOUT error
audio-operation-timeout

2

Hey @joss.ygay

Thanks for your feedback.

Is there a microphone permission request popup after starting the audio?

Thanks
Vic

3

Hello @vic.yang

No, there is no permission request popup

4

Hey @joss.ygay

I saw you are using the Ionic framework, did you enable microphone permission when setup the project?

A quick way to test it is by visiting the WebRTC sample project, and testing whether the microphone works.

Thanks
Vic

5

Hello @vic.yang

I saw you are using the Ionic framework, did you enable microphone permission when setup the project?

You mean this one?

A quick way to test it is by visiting the WebRTC sample project, and testing whether the microphone works.

As I test it, the permission pops up and the mic is working in the WebRTC sample project

6

Hey @joss.ygay

Could you reset the microphone permission and try it again?

And are there any other errors on the console when the issue occurs?

Thanks
Vic

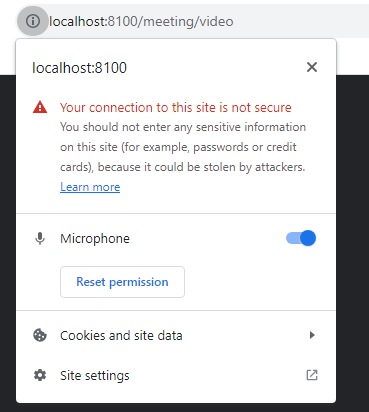

7

Hello @vic.yang

Could you reset the microphone permission and try it again?

I reset the permission and reload the page. Only Sound permission automatically turns on. Also there is no request permission for microphone pops-up

Clarification: With Permission or Without Permission, Operation timeout occurs

And are there any other errors on the console when the issue occurs?

No, only OPERATION_TIMEOUT

9

Additional Info:
I upgraded the following:
Ionic Framework: 6.6.1 → 7.2.3
Capacitor: 3.5.1 → 5.0

OPERATION_TIMEOUT still occurs

10

Hey @joss.ygay

Video SDK web needs to request microphone permission when calling stream.startAudio method. If the permission is not granted by the browser or webview, it will lead to timeout error.

I’m not very familiar with Ionic, searched on the internet and found it seems in order to enable WebRTC, it’s required to add some plugins. The following link is a Github example.

Thanks
Vic

11

Hello @vic.yang ,

I will check on this, I will send a feedback once done. Thank you

12

Hello @vic.yang

I studied the github example you provided and tested the plugins in our web app, but the plugins only works on Android and IOS, does not work in Browsers.

Also, Im not sure if this will help. I compared your sample app (react) to our app. I noticed this in the logs.

Sample App (React)

Our App

We did not receive the 2nd log from the js_media. My teammate (@redenfloyd.cayanan) confirms that if we have that 2nd log the will audio work.

13

Hey @joss.ygay

Thank you for sharing the info with us.

Can you test whether the current site is a secure context for WebRTC? Use the following statement:

console.log(window.isSecureContext );

Thanks
Vic

14

Hello @vic.yang

Thank you for your response.

Can you test whether the current site is a secure context for WebRTC?

Upon testing, here is the result:

console.log("=== is Secure Context ===", window.isSecureContext );


15

Hey @joss.ygay

Would you mind enabling client-side telemetry and report the issue to us? It’s very useful for us to investigate the issue.

Thanks
Vic

16

Hello @vic.yang ,

Upon checking the document about client-side telemetry. This is what I added in the code

Basic Telemetry

const oPayload = {
  app_key: this.zoomSDK_KEY,
  tpc: session.topic,
  role_type: role,
  session_key: session.password,
  user_identity: user.fullname,
  iat: iat,
  exp: exp,
  telemetry_tracking_id: "Operation_Timeout_Issue"
};

Detailed Telemetry:

this.clientSideTelemetry = this.zoomClient.getLoggerClient()

await this.client.join(param1, param2, param3, param4)

Modal.vue:

const buttonOk = async () => {
    window.navigator.mediaDevices.getUserMedia({audio: true})

    await callStore.zoomStream.startAudio()
      .then(() => console.log("=== audio started ==="))
      .catch(e => console.error("=== Unabled to start audio ===", e))
      .finally(async () => {
        console.log("=== telemetry ===", callStore.clientSideTelemetry)
        await callStore.clientSideTelemetry.reportToGlobalTracing()
      })

    modalController.dismiss();
  }

Where can we find the submitted report?

17

Hey @joss.ygay

Thank you for your report.

We can find your report via the telemetry_tracking_id, and we will analyze the logs, if there are any findings we will keep you informed.

Thanks
Vic

18

Hey @joss.ygay

How did you import and use Video SDK Web? From npm or from CDN?

Could you test the following statement on the console?

console.log(JsMediaSDK_Instance.version);

Thanks
Vic

19

Hello @vic.yang

How did you import and use Video SDK Web? From npm or from CDN?

We are using NPM
package.json

{
...
"@zoom/videosdk": "^1.8.5",
...
}

store.ts

import ZoomVideo, {
  CommandChannel,
  LoggerClient,
  Participant,
  Stream,
  VideoClient,
  VideoQuality
} from "@zoom/videosdk";

however when initializing client, we are using CDN asset.

const zmClientInitParams = {
   language: "en-US",
   dependentAssets: `CDN`,
  initOptions: { enforceMultipleVideos: true },
};
20

Hello @vic.yang ,

Could you test the following statement on the console?

const buttonOk = () => {
    console.log("=== starting audio ===")
    console.log("=== JS Media ===",JsMediaSDK_Instance.version);
  }


21

Hey @joss.ygay

Thanks for your info.

Did you wait for the zmClient.init method to get resolved before calling the zmClient.join method?

zmClient.init('en-US','CDN',{
  enforceMultipleVideos: true
}).then(()=>{
  return zmClient.join('topic','token','name')
}).then(()=>{
  const stream = zmClient.getMediaStream();
// bind the button click handler
  stream.startAudio();
})

Thanks
Vic
