Hey @lemon97213,
I apologize for the delay, I am still working on this.
Stay tuned.
Thanks!
Michael
Hey @lemon97213,
I wrote up some pretty basic code that should help out. Here is how to use it:
- Fill out the information at the top of the VC. There is appGroupID, JWT, Meeting Number, and Meeting Password.
- Start a meeting with waiting room and screensharing enabled using a Zoom client. I used my mac client.
- Run the application with that meeting’s number and password input into the VC.
- You will see 3 views: Red is going to be your local view stream, blue is the remote stream, and green is going to be the view you will share.
- Click the join meeting button.
- Admit the user on the Zoom Client machine.
- Observe the 2 video streams now show your local device stream and the remote users stream.
- Click the “Start app share button”
- Wait a few seconds, and if all went well you should see the green view show up on your Zoom Client.
I wrote this on a handset device so the views might be small for you, but you can change the size to whatever youd like. Here is the code:
//
// ViewController.m
// AppShareWithViewExample
//
// Created by Michael Condon on 9/22/21.
//
#import "ViewController.h"
@interface ViewController ()
@property (nonatomic) UIView* localView;
@property (nonatomic) UIView* remoteView;
@property (nonatomic) UIView* shareView;
@property (nonatomic) UILabel* waitingRoomLabel;
@property (nonatomic) UIButton* joinMeetingButton;
@property (nonatomic) UIButton* startAppShareButton;
@end
@implementation ViewController
NSString* appGroupId = @"";
NSString* JWT = @"";
NSString* meetingNumber = @"";
NSString* meetingPassword = @"";
- (void)loadView {
[super loadView];
[self initializeSDK];
}
- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view.
[self setupViews];
}
- (void)initializeSDK {
MobileRTCSDKInitContext *initContext = [[MobileRTCSDKInitContext alloc] init];
initContext.appGroupId = appGroupId;
initContext.domain = @"https://zoom.us";
if ([[MobileRTC sharedRTC] initialize:initContext] == YES) {
MobileRTCAuthService* authService = [[MobileRTC sharedRTC] getAuthService];
if (!authService) {
return;
}
authService.jwtToken = JWT;
authService.delegate = self;
[authService sdkAuth];
}
}
- (void)setupViews {
CGFloat screenCenterX = self.view.center.x - 50;
UIView *localView = [[UIView alloc] initWithFrame:CGRectMake(screenCenterX, 0, 100, 100)];
localView.backgroundColor = [UIColor redColor];
[[self view] addSubview:localView];
self.localView = localView;
UIView *remoteView = [[UIView alloc] initWithFrame:CGRectMake(screenCenterX, 100, 100, 100)];
remoteView.backgroundColor = [UIColor blueColor];
[[self view] addSubview:remoteView];
self.remoteView = remoteView;
UIView *shareView = [[UIView alloc] initWithFrame:CGRectMake(screenCenterX, 200, 100, 100)];
shareView.backgroundColor = [UIColor greenColor];
[[self view] addSubview:shareView];
self.shareView = shareView;
UIButton *joinMeetingButton = [UIButton buttonWithType:UIButtonTypeSystem];
[joinMeetingButton addTarget:self
action:@selector(joinMeeting:)
forControlEvents:UIControlEventTouchUpInside];
[joinMeetingButton setTitle:@"Join Meeting" forState:UIControlStateNormal];
joinMeetingButton.frame = CGRectMake(screenCenterX, 300, 100, 50);
[[self view] addSubview:joinMeetingButton];
self.joinMeetingButton = joinMeetingButton;
UILabel *waitingRoomLabel = [[UILabel alloc] initWithFrame:CGRectMake(screenCenterX, 350, 300, 100)];
waitingRoomLabel.text = @"Not yet in meeting.";
[[self view] addSubview:waitingRoomLabel];
self.waitingRoomLabel = waitingRoomLabel;
UIButton *startAppShareButton = [UIButton buttonWithType:UIButtonTypeSystem];
[startAppShareButton addTarget:self
action:@selector(startAppShare:)
forControlEvents:UIControlEventTouchUpInside];
[startAppShareButton setTitle:@"Start app share" forState:UIControlStateNormal];
startAppShareButton.frame = CGRectMake(screenCenterX, 400, 100, 50);
[[self view] addSubview:startAppShareButton];
self.startAppShareButton = startAppShareButton;
}
- (void)joinMeeting:(UIButton*)sender {
MobileRTCMeetingService *meetService = [[MobileRTC sharedRTC] getMeetingService];
MobileRTCMeetingSettings *meetSettings = [[MobileRTC sharedRTC] getMeetingSettings];
if (!meetService) {
return;
}
if (!meetSettings) {
return;
}
meetService.delegate = self;
meetService.customizedUImeetingDelegate = self;
MobileRTCMeetingJoinParam *joinParams = [[MobileRTCMeetingJoinParam alloc] init];
joinParams.meetingNumber = meetingNumber;
joinParams.password = meetingPassword;
joinParams.userName = @"ios sdk";
meetSettings.enableCustomMeeting = YES;
MobileRTCMeetError joinMeetingReturnValue = [meetService joinMeetingWithJoinParam:joinParams];
if (joinMeetingReturnValue == MobileRTCMeetError_Success) {
NSLog(@"Joining meeting");
} else {
NSLog(@"Failed to join meeting");
}
}
- (void)showAttendeeVideos {
MobileRTCVideoView *localVideoView = [[MobileRTCVideoView alloc] initWithFrame:self.localView.bounds];
[localVideoView setVideoAspect:MobileRTCVideoAspect_PanAndScan];
[self.localView addSubview:localVideoView];
NSUInteger myUserID = [[[MobileRTC sharedRTC] getMeetingService] myselfUserID];
[localVideoView showAttendeeVideoWithUserID:myUserID];
NSArray *inMeetingParticipants = [[[MobileRTC sharedRTC] getMeetingService] getInMeetingUserList];
NSUInteger otherUserID = 0;
for (NSNumber *currentUserID in inMeetingParticipants) {
if ([currentUserID unsignedIntegerValue] != myUserID) {
otherUserID = [currentUserID unsignedIntegerValue];
break;
}
}
if (otherUserID == 0) {
return;
}
MobileRTCVideoView *remoteVideoView = [[MobileRTCVideoView alloc] initWithFrame:self.remoteView.bounds];
[remoteVideoView setVideoAspect:MobileRTCVideoAspect_PanAndScan];
[self.remoteView addSubview:remoteVideoView];
[remoteVideoView showAttendeeVideoWithUserID:otherUserID];
}
- (void)startAppShare:(UIButton*)sender {
MobileRTCMeetingService *meetService = [[MobileRTC sharedRTC] getMeetingService];
if (!meetService) {
return;
}
if (meetService.isStartingShare) {
[meetService stopAppShare];
} else {
[meetService startAppShare];
ViewController* __weak weakSelf = self;
dispatch_async(dispatch_get_main_queue(), ^{
ViewController* strongSelf = weakSelf;
if (strongSelf) {
[meetService appShareWithView:strongSelf.shareView];
}
});
}
}
// #pragma mark - MobileRTCAuthDelegate
- (void)onMobileRTCAuthReturn:(MobileRTCAuthError)returnValue {
switch (returnValue) {
case MobileRTCAuthError_Success:
NSLog(@"SDK Authed");
break;
default:
NSLog(@"Could not auth SDK.");
break;
}
}
// #pragma mark - MobileRTCMeetingServiceDelegate
- (void)onMeetingError:(MobileRTCMeetError)error message:(NSString *)message {
switch (error) {
case MobileRTCMeetError_Success:
break;
default:
NSLog(@"MobileMeetError: %lu", (unsigned long)error);
}
}
- (void)onWaitingRoomStatusChange:(BOOL)needWaiting {
if (needWaiting == YES) {
NSLog(@"In waiting room...");
if (!_waitingRoomLabel) {
return;
}
_waitingRoomLabel.text = @"in waiting room";
} else {
NSLog(@"Left waiting room.");
if (!_waitingRoomLabel) {
return;
}
_waitingRoomLabel.text = @"Left waiting room";
[self showAttendeeVideos];
}
}
- (void)onJoinMeetingConfirmed {
NSLog(@"Joined meeting.");
}
- (void)onJoinMeetingInfo:(MobileRTCJoinMeetingInfo)info completion:(void (^)(NSString * _Nonnull, NSString * _Nonnull, BOOL))completion {
NSLog(@"Invalid meeting credentials");
}
- (void)onJBHWaitingWithCmd:(JBHCmd)cmd {
switch (cmd) {
case JBHCmd_Show:
NSLog(@"Joined before host.");
break;
default:
break;
}
}
- (void)onDestroyMeetingView {
return;
}
- (void)onInitMeetingView {
return;
}
@end
Lemme know if you have any questions.
Thanks!
Michael
Hi @Michael_Condon ,
I don’t have appgroupID, since I think only screen share need to have it , if I only share the view also need it too?
Hi @Michael_Condon ,
I am facing new problem now. Although The appshare problem still exist.
I created object
MobileRTCMeetingStartParam4WithoutLoginUser * user = [[MobileRTCMeetingStartParam4WithoutLoginUser alloc]init] ;
But In the new version( MobileRTC Version: 5.7.1 (644)) the userToken param is missing.
What should I do?
Thanks,
Alex

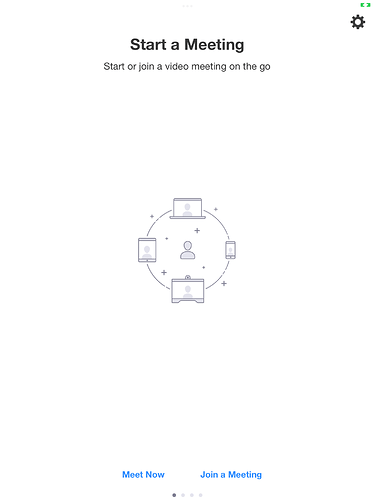

Also The new demo app have no response while I click in any button expevt “Join a meeting”, but after i have enter the meeting no. and pwd.
Hey @lemon97213,
To keep the threads organized, can you open a new post with the token issue?
Thanks!
Michael
