"auth sdk failed" when running zoom sdk demo

[kiyevin101]

Description
I follow the instructions here https://marketplace.zoom.us/docs/sdk/native-sdks/windows/getting-started/build-run-play

When running the zoom sdk demo, I always get “auth sdk failed”.

Which version?
latest version download from zoom github

To Reproduce(If applicable)
Steps to reproduce the behavior:

1. compile zoom sdk demo
2. start sdk_demo_v2.exe

3. I am not sure what to input here, so I click “setdomain” directly
4. I already create an JWT app from maketplace, so I paste its JWT token to it.
5. click auth
   get “auth sdk failed”.

Device (please complete the following information):

• OS: Windows 10

other info
The zoom sdk guide said after click SetDomain, the next step will " Then in the following screen, you will be asked to enter your SDK keys & secrets .". But in my test, it ask me to input “sdk JWT token”. I don’t know why.

[nertht]

Sdk version: (version: v5.2.42037.1112)
OS: Win 10
I created jwt app on marketplace. Generate jwt token and use it in sdk app runned from code. And result was the same as described before (error message “auth sdk failed”). I tried to create sdk app as well and generate jwt token on jwt.io with settings:
{
“appKey”: “xxxxxxxxxxxxxxxxxxxxxx”,
“iat”: 1609913345,
“exp”: 1609993345, (less than 2 days after iat)
“tokenExp”: 1609999345 (more than 1/2 hour after exp)
}
But same result (message “auth sdk failed”).

[kenji.terasaka]

I have successfully authenticated.
(Version:v5.2.41727.0928)
OS:Windows10
IDE:VisualStudio2017

I think the following topics will be helpful.

zoom/zoom-sdk-windows

Sdk jwt token fail

Description A clear and concise description of what the question is. Which version? Knowing the version can help us to identify your issue faster. To Reproduce(If applicable) Steps to reproduce the behavior: Go to ‘…’ Click on ‘…’ Scroll down to ‘…’ See error Screenshots If applicable, add screenshots to help explain your problem. Smartphone (please complete the following information): Device: [e.g. iPhone6] OS: [e.g. iOS8.1] Version [e.g. 22] Additional context Add any other conte…

[nertht]

I solved my question. My “iat” was pointing to future. And iat is in short the timestamp symbolized time of token creation. It should not point to the future.

[Michael_Condon]

Hey @kiyevin101,

Thank you for using the dev forum!

The default placeholder text “https://zoom.us” should work for the domain on the screen in your screenshot. This is just to specify what network domain you would like to use. For example, if you were in the UK you could do “https://zoom.uk” so that you connect to servers closer to you.

For the JWT issue: Are you pasting the JWT directly from the JWT tile of the Zoom Marketplace? If so, this will cause the error. The JWT provided in the JWT tile is for the Zoom API, not the SDK’s. To authenticate the SDK, you have to make a JWT out of your SDK Key and SDK Secret.

Thanks!
Michael

[it.it]

Hi.

No matter what I tried on http://jwt.io/ - it always fail with “Auth SDK failed”.
can you please provide a step by step instructions on how to generate the correct token?

thanks

[Michael_Condon]

Hey @it.it,

Thanks for using the developer forum!

To get a sample JWT for using the SDK, you can do the following:

1. Log into Zoom Marketplace
2. Click the “Build App” button in the top left corner
3. Click the “View Here” button in the “SDK” tile
4. You should now see your SDK key and SDK secret

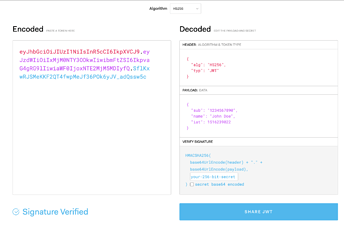

5. Go to https://jwt.io/ and scroll down until you see this page:


6. Replace the payload in the right hand side with this payload:

{
“appKey”: “string”,
“iat”: 0,
“exp”: 0,
“tokenExp”: 0
}

14. Copy your SDK Key from the Zoom Marketplace (in this example, I will use 1234ABC for the key) and paste it inside the quotes where it says string, next to appKey in the payload.
15. Go to https://www.epochconverter.com/
16. And you will see the current time in epoch format here:


17. Copy that value and place it where the 0 is next to iat in the jwt payload
18. Now on epoch converter.com, set the date 1 day in the future, as I am writing this it is the 16th so I will set this to be the 17th
19. Click “Human date to Timestamp” and copy the value here:


20. Paste this to replace the 0 next to both exp and tokenExp in the payload. (These don’t have to be the same value, and they also don’t have to be a date 1 day from now, this is just for example):

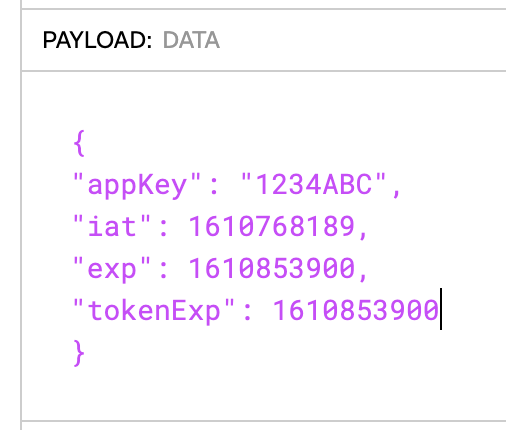

21. So now your payload should look like this:

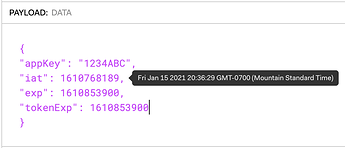

22. You can hover over these numbers and it should show you the date in readable format:


23. Now copy your SDK Secret from the Zoom Marketplace and paste it into the box that says “your 256 bit secret”. Leave “secret base64 encoded” unchecked:

24. For this example I am going to use 5678DEF for my sdk secret. Your screen should now look like this:


25. Your JWT is the text that is on the left under “Encoded”. Copy this directly, do not click the “Share JWT” button:


26. Paste this text directly into the demo app box when it asks you to auth.

Please let me know if that works.
Thanks!
Michael

[it.it]

Hi Michael

thanks for the very detailed answer!

1. I did manage to get a valid JWT token - thanks, but alas - the demo app is still throwing the next error (empty error description):

Error Type: LastErrorType_Meeting
Error Code: 0
Error Description:

2. for other readers - please notice that the quotation marks in the payload are wrong - you’ll need to use the regular/neutral quotation marks instead of the curved/typographic quotation marks
   more details about the difference are here - How & When to Use Quotation Marks | Study.com.

seems like this forum is preventing us from using the regular/neutral one. kind of weird for a technical forum

thanks again!

[Michael_Condon]

Hey @it.it,

Awesome! I am happy to hear it helps, and yes it is a bummer the forum changes the quotes .
As for your error, the error code 0 actually means “No error”.

Thanks!
Michael

[soluzione.ltda]

@kiyevin101

en in the following screen, you will be asked to enter your SDK keys & secrets .". But in my test, it ask me to input “sdk JWT token”. I don’t know why.

Hello Michael,
Is that a change you´ve made in the demo where instead of App Key // App Secret screen, you´ve changed to JWT screen to authenticate the SDK ?

Because I´m having the same behavior, in your guide it says after domain screen, I should inform App Key // App Secret on the screen, but I´m getting the JWT screen instead.

Is the guide outdated? The way now is to create manually a JWT and authenticate?
Or there is a way to get the SDK keys & secrets screen and use it instead ?

Build, Run & Play - Getting Started - Windows - Client SDKs - Zoom...

[Michael_Condon]

Hey @soluzione.ltda,

Thanks for using the dev forum!

Yes, that guide is outdated unfortunately. We will work to get that updated as soon as possible.
The behavior of the demo app has changed since then. Despite recommending developers to use JWT’s instead of SDK key’s and secrets, many developers would use key’s and secrets which introduces security vulnerabilities. We do not encourage developers to authenticate the SDK using a key and secret anymore. The demo applications have been updated to reflect this ongoing security effort. If you run into issues creating a JWT, please let me know and I can assist there

Thanks!
Michael
